Our Products Range
Monel Rings, Monel Alloy Strip, Monel Plates Stockist, Monel Hot Rolled Plate, Monel Circle, Monel Sheets, Monel Plates, Monel Sheets & Plates, Monel HR Plates, Monel CR Sheet, Monel Plain Sheet, Monel Cold-rolled Coil, Monel Alloy Hot-Rolled Coils, Monel Alloy Plates, Monel Flats, Monel Alloy Sheets Manufacturer in India.

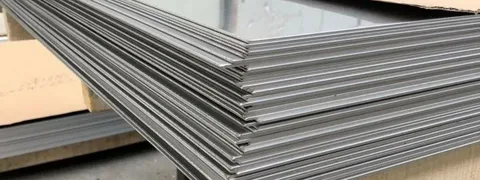

Monel Sheets & Plates are produced from nickel-copper alloys that provide excellent strength and superior resistance to corrosion in aggressive environments. These materials perform exceptionally well in seawater, acidic solutions, and high-temperature conditions. Popular grades such as Monel 400 Sheets, Monel K500 Plates, and ASTM B127 Monel Plates offer high resistance to pitting, stress corrosion cracking, and chemical attack, making them suitable for critical industrial applications.
Monel Sheets & Plates are produced from nickel-copper alloys that provide excellent strength and superior resistance to corrosion in aggressive environments. These materials perform exceptionally well in seawater, acidic solutions, and high-temperature conditions. Popular grades such as Monel 400 Sheets, Monel K500 Plates, and ASTM B127 Monel Plates offer high resistance to pitting, stress corrosion cracking, and chemical attack, making them suitable for critical industrial applications.
Monel UNS N04400 / N05500 Sheets & Plates, Monel 400 Sheets, Plates & Coils, monel plate suppliers, monel sheet suppliers, monel steel plate, Monel K500 Sheets, Plates & Coils Supplier
Eramets steel alloys pvt ltd supplies premium quality Monel Sheets & Plates in different thicknesses, widths, and surface finishes as per ASTM, ASME, and DIN standards. These sheets and plates are known for their high mechanical strength, good weldability, and long service life. Their excellent thermal conductivity and non-magnetic nature make them ideal for both structural and high-performance engineering uses.
Monel Sheets & Plates Specifications
| Specifications | ASTM B127 / ASME SB127 |
|---|---|
| Dimensions | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| Size Range | Cold Rolled : 0.5-6.4 mm Hot Rolled : 3.0–10.0 mm |
| Thickness | 0.3 mm to 120 mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| International Standard | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
| Tolerances (width / thickness) | EN 10258/ DIN 59381 EN 10151 EN 10088 |
| Form | Sheet, Plate, Coil |
| Finish | Cold rolled sheet (CR) & Hot rolled plate (HR). |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Profiling | Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting |
| Grades | 400 / K500 |
Chemical Composition of Monel Material Sheets & Plates
| Grade | Ni (%) | Cu (%) | Fe (%) | Mn (%) | Si (%) | Al (%) | Ti (%) | C (%) | S (%) |
|---|---|---|---|---|---|---|---|---|---|
| Monel 400 | 63.0 min (Balance) | 28.0 – 34.0 | 2.5 max | 2.0 max | 0.5 max | — | — | 0.30 max | 0.024 max |
| Monel K500 | 63.0 min (Balance) | 27.0 – 33.0 | 2.0 max | 1.5 max | 0.5 max | 2.3 – 3.15 | 0.35 – 0.85 | 0.25 max | 0.010 max |
Mechanical Properties of Monel Sheets & Plates
| Grade | Tensile Strength (UTS) | Yield Strength (0.2% YS) | Elongation (%) | Hardness | Melting Point |
|---|---|---|---|---|---|
| Monel 400 | 550–620 MPa | 170–345 MPa | 30–40% | 110–150 HB | 1300–1350°C |
| Monel K500 | 965–1100 MPa | 690–790 MPa | 12–20% | 200–350 HB | 1315–1350°C |
Mechanical Properties Of Monel 400/K500 Pipes and Tubes
| Grade | Tensile (ksi) | .2% Yield (ksi) | Elongation % | Hardness (HRb) |
|---|---|---|---|---|
| 400 | 75 to 90 | 25 to 50 | 60 to 35 | 60 to 80 |
| K500 | Psi – 1,60,000 , MPa – 1100 | Psi – 1,15,000 , MPa – 790 | 20 % | – |
Other Types of Monel Sheets & Plates
| Monel Sheets & Plates | Monel Sheets & Plates |
|---|---|
| Monel Hot Rolled Sheets & Plates | Monel Cold Rolled Sheets & Plates |
| Monel HR Sheets & Plates | Monel CR Sheets & Plates |
| Monel Pickled Sheets & Plates | Monel 2B Finish Sheets & Plates |
| Monel No.1 Finish Sheets & Plates | Monel No.4 Finish Sheets & Plates |
| Monel Polished Sheets & Plates | Monel Mirror Finish Sheets & Plates |
| Monel Matt Finish Sheets & Plates | Monel Brush Finish Sheets & Plates |
| Monel Perforated Sheets & Plates | Monel Chequered Plates |
| Monel Plain Sheets & Plates | Monel Corrugated Sheets & Plates |
| Monel Heavy Thickness Plates | Monel Thin Sheets |
| Monel Cut to Size Sheets & Plates | Monel Slitting Coils to Sheets |
| Monel Industrial Sheets & Plates | Monel Decorative Sheets & Plates |
| Monel ASTM B127 Sheets & Plates | Monel ASTM B906 Sheets & Plates |
| Monel 400 Sheets & Plates | Monel K500 Sheets & Plates |
