Our Products Range

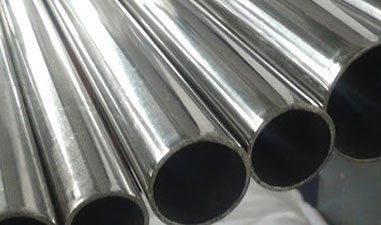

Monel 400 Tube suppliers in Mumbai, India
Eramets Steel Alloys is a reliable manufacturer and supplier of premium quality Monel 400 tubes and tubing, offered in a wide range of sizes, types, and specifications. Monel 400 is a nickel-copper alloy containing approximately 67% nickel and 28% copper, along with small amounts of carbon, manganese, silicon, iron, aluminum, and sulfur. This composition provides excellent resistance to corrosion, particularly in seawater and aggressive chemical environments.
Our Monel 400 tubing is known for its superior mechanical and physical properties, including a minimum yield strength of 240 MPa and a minimum tensile strength of 550 MPa. These characteristics make it suitable for a variety of high-performance industrial applications.
Monel 400 Seamless Pipe, Manufacturer of Alloy 400 ERW Pipe, Hot sale - check Monel 400 Welded Pipe Price in India.
The UNS N04400 tubes have a high melting point of approximately 1350°C, making them ideal for elevated temperature services. Manufactured in accordance with ASTM B165 and ASTM B725 standards, our range includes seamless, welded, ERW, and fabricated tubing options.
At Eramets Steel Alloys, we supply Monel 400 seamless tubes that meet ASTM, ASME, and API standards, available in nominal bore sizes from 15 NB to 150 NB. The outer diameter ranges from 6.35 mm to 254 mm, with wall thickness between 0.6 mm and 20 mm. Our tubing is available in various forms such as round tubes and hydraulic ERW tubing, with end finishes including plain end, beveled end, and threaded end.
Monel 400 tubes are widely used in industries such as marine, desalination, chemical processing, heat exchangers, condensers, and boilers. They are also suitable for applications in pharmaceuticals, petrochemicals, pulp and paper, specialty chemicals, and gas processing sectors.
Specification Chart of Monel 400 Tube
| Specifications | ASTM B 165 / ASME SB 165, ASTM B 725 / ASME SB 725 |
| Dimensions | ASTM, ASME and API |
| Size | 15″ NB to 150″ NB |
| Specialized In | Large Diameter Size |
| Range | 6.35 mm OD up to 254 mm OD in 0.6 to 20 mm thickness |
| Type | Seamless / ERW / Welded / Fabricated |
| Form | Round, Hydraulic, Etc |
| Length | Single Random, Double Random & Cut Length |
| End | Plain End, Beveled End, Threaded |
Monel 400 Tube Chemical Formula
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.24 max | 28.0 – 34.0 | 2.50 max | 63.00 min | – |
Monel WERKSTOFF NR. 2.4360 Tube Mechanical Analysis
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
| Monel 400 | 8.8 g/cm³ | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
Equivalent List of UNS N04400 Tube
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
Available Stock of Monel 400 Tube
| Monel Alloy 400 Tubing | Alloy 400 Seamless Tube Manufacturer |
| Alloy 400 Seamless Tubing | Monel Alloy 400 UNS N04400 Tubes |
| Monel Alloy 400 EFW Pipe Manufacturer India | ASTM B163 Alloy 400 Tubes |
| Monel 400 Alloy Tubes | Monel Alloy 400 Pipe Sizes |
| 2.4360 Alloy 400 Tubes | ASME SB127 Nickel Alloy Monel 400 Welding Pipe |
| Monel Alloy 400 Piping Manufacturers in India | Monel 400 Chemical Process Tube |
| Monel Seamless Pipe 3 Inch | Alloy 400 Monel 2.4360 Schedule 5S Pipe |
| ASME Monel 400 Seamless Tube | Grade Monel 400 Thin Wall Pipe |
| Nickel Alloy Monel 400 Material Steel Pipes | ASTM B730 Monel 400 Tubing |
| WERKSTOFF NR. 2.4360 Seamless Tubing | Monel UNS N04400 Clad Pipe |
